How to Install an Out-Swing Window Operator Handle
Improper installation of an out-swing window operator handle can not only hinder smooth operation but also pose safety risks. This guide provides step-by-step instructions for installing an operator handle on out-swing windows.
I. Pre-Installation: Tools & Materials
Tools:
Phillips screwdriver
Electric drill
Tape measure
Pencil
Level
Rubber mallet
Materials:

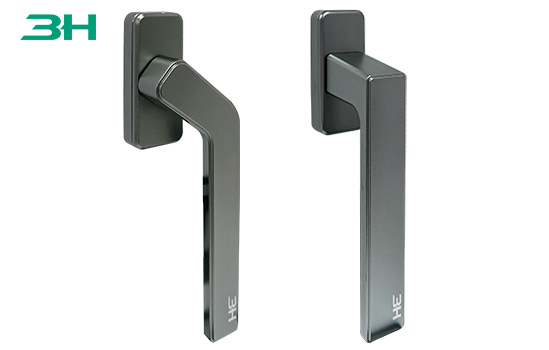

New operator handle
Handle base plate
Drive rod
II. Removing the Old Handle
Locate Screw Holes:
Check the bottom/sides of the old handle for 1–2 securing screws.
Remove Screws:
Unscrew counterclockwise with a Phillips screwdriver. Apply lubricant if rusted.
Detach Handle:
Gently wiggle and lift the handle upward. Keep removed screws.
Clean Base:
Wipe the mounting surface with a cloth to remove dust or old adhesive.
III. Installing the New Handle
Mark Drilling Points:
Align the new base plate with the original holes. Mark new screw positions with a pencil. Use a level to ensure the handle sits vertically.
Drill & Countersink Holes:
Drill vertically at marked points with a bit matching the screw diameter.
Wood frames: Skip countersinking.
Aluminum/plastic-steel frames: Use a countersink bit to prevent cracking.
Secure Handle:
Align the base plate, insert screws from inside the frame, and tighten partially. Attach the handle body to the base slots, press firmly, and fully tighten all screws.
Connect Drive Rod:
Insert one end into the handle’s drive box and the other into the window lock point, matching the opening direction.
Test Operation:
Rotate the handle 90° to check if the window locks/unlocks smoothly. Adjust the rod length if needed.
IV. Inspection & Adjustment
Repeated Operation Test:
Open/close the window at least 10 times to ensure no looseness or unusual noises.
Seal Check:
Verify weatherstripping alignment when closed to prevent leaks.
Child Safety Lock Test (if applicable):
Ensure the lock bolt extends/retracts smoothly.
Though straightforward, installing an out-swing window operator requires patience and precision. Proper installation extends window lifespan and enhances security. For operator handle purchases, contact 3H Architectural Hardware.
