Casement Window Handle CZ11A

Item No.	CZ11A
Size	159.51856mm
Application	casement window
Length of shaft	Optional
Material	aluminum alloy
Surface Treatment	Powder coating
Color	Optional
Components	shaft,cover
Function	durable,easy-installation,smooth-operation
Package	Box

Specification

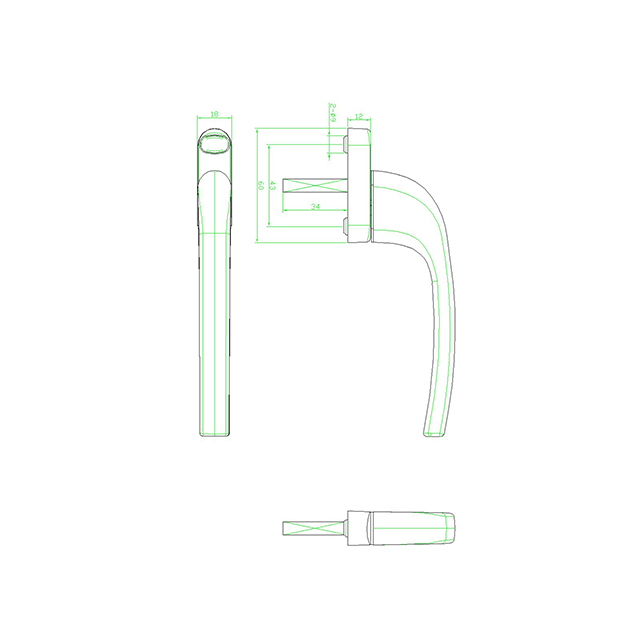

Aluminum-alloy-casement-window-multi-point-lockable-handle-CZ11A-2-3

Product Description

1. Without left or right version

2. The length of shaft can be customized

Key Points for Handle Installation

Decide the correct position and size of the shaft and screw holes according to the selected handle and other items.
After the position is decided,drill for screw and square shaft on profile according to the handle.
The handle must operate freely on the profile.
The installation position must be aligned with its matching transmission device,non-interference or deflective.

Note:Different handle matches different transmission devices and profiles,there is a difference on the position

and the size of the punching hole.Please contact us when it is necessary.
