EN 4 Ball Bearings Butt Hinge 504030-4BB - Premium quality door & window hinge hardware from Hehe Hardware.
Item No. | European standard door hinge-4BB |
Size | Details in Specification as below |
Application | heavy weight doors and doors requiring high frequency service |
Max.Door weight(kgs) | 130kgs |
Material | 304 Stainless steel |
Surface Treatment | Polish / satin |
Color | silver |
Components | Screws |
Function | durable,easy-installation,smooth-operation |

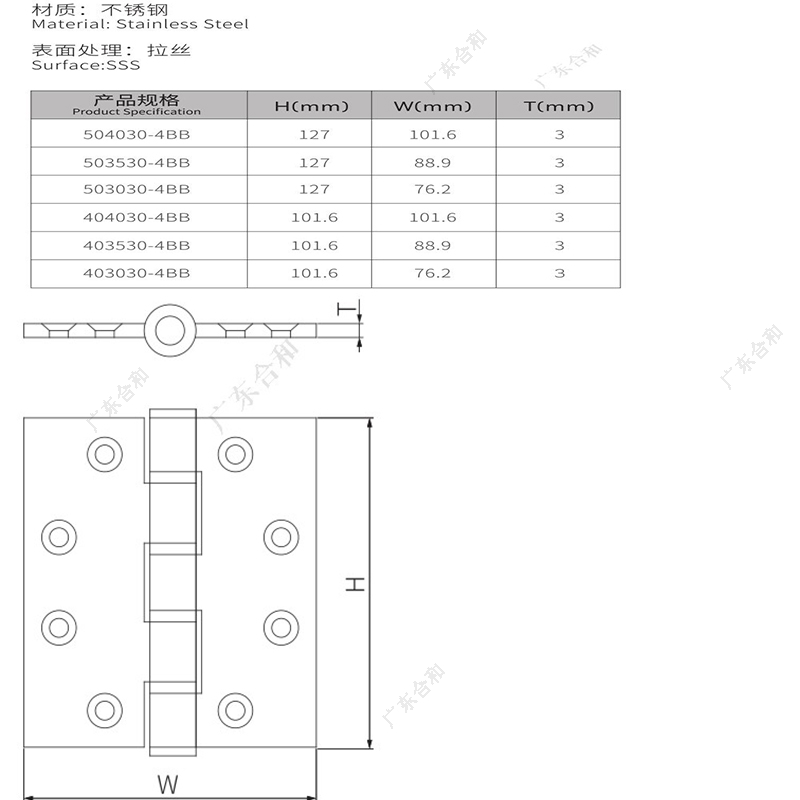

Specification
Product Description
1. Satin / polish
2. Different size can be offered
3. With Ball Bearing,and it is meeting the European Criterion.
4. Heavy Weight from 20kgs-132kgs
5. Application: - ball bearings
- Non-rising removable pin with button tip and plug
- For use on heavy weight doors and doors requiring high frequency service
The suitable door height is 950mm-2850mm.But the hinge quantities should be matched with the door height.
