Limiter Stay DK12 - Premium quality door & window hinge hardware from Hehe Hardware.
Item No. | DK12 |
Size | 305*16*16mm |
Application | top-hung/casement window |
Material | 304SS |
Surface Treatment | Natural |
Color | Natural |
Components | screws |
Function | durable,easy-installation,smooth-operation |
Package | Polybag |
Outstanding Feature:High Quality and Steady
Specification

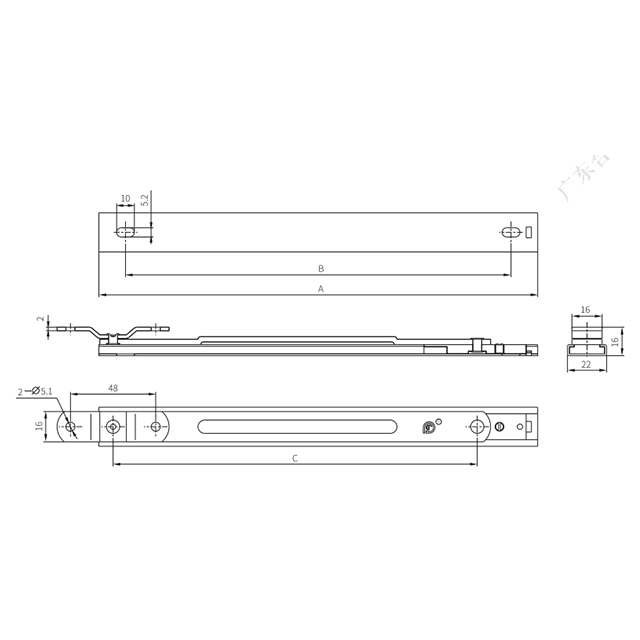

22 square groove limiter stay | ||||
NO. | Item no. | A | B | C |
1 | DK8 | 200 | 170 | 130 |
2 | DK10 | 254 | 222 | 205 |
3 | DK12 | 305 | 275 | 255 |
4 | DK14 | 343 | 313 | 300 |
Product Description
1. Material:excellent stainless steel
2. Comply with JG/T127-2017 standards.
3. The limiter stay is especially designed for restricting opening angle.
4. Limiter stay can be used to casement window and top-hung windows.
Its role:
(1)Limit the casement opening angle;
(2)When window in the opening state,prevent the strong wind to let the sash closed and collision the window frame and then damaged the window.
