Limiter Stay DO10 - Premium quality door & window hinge hardware from Hehe Hardware.
Item No. | DO10 |
Size | / |
Application | top-hung/casement window |
Material | 304SS |
Surface Treatment | Natural |
Color | Natural |
Components | screws |
Function | durable,easy-installation,smooth-operation |
Package | Polybag |
Outstanding Feature:Suitable for European Standard Profiles
Specification

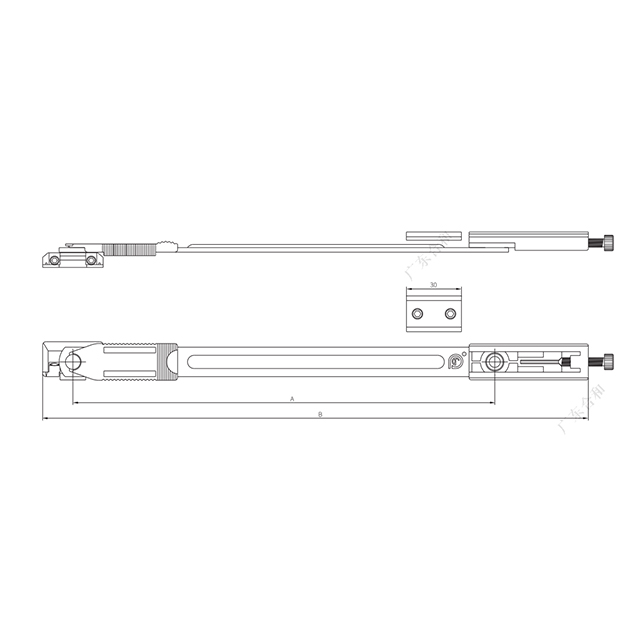

European standard limiter stay | ||||
NO. | Item no. | A | B | Window Width |
1 | DO6 | 108 | 175.5 | ≧250mm |
2 | DO8 | 180 | 247 | ≧300mm |
3 | DO10 | 230 | 305 | ≧360mm |
4 | DO12 | 279 | 355 | ≧410mm |
5 | DO14 | 328 | 405 | ≧460mm |
Product Description
1. Material:excellent stainless steel
2. Comply with JG/T128-2017 standards.
3. The limiter stay is especially designed for restricting opening angle.
4. Limiter stay can be used to tilt-turn and inward opening window to protect the window against strong wind.
5. Easy separation just by pulling the screw buckle back makes it convenient to wash and repair.
