OEM SS304 Window Friction Stay HHT14

Products Name	Window Friction Stay Hinge
Brand Name	3H, OEM
Model Number	HHT14
Material	SS304
Packing	Box, Parcel, Carton
Delivery Time	Shipped in 25 days after payment
Start Port	Foshan, Guangzhou, Shenzhen
Place of Origin	Guangdong, China
OEM/ODM Availability	Available
Supply Ability	10,000 pieces per month
MOQ	200 pieces
Unlock the stay	Elevate and push the window sash
Application	Top hung window/Casement Window
Usage	Connect the window frame and sash,supporting window sash and realizing opening and closing function

Outstanding Feature: Special Transverse Patents Design

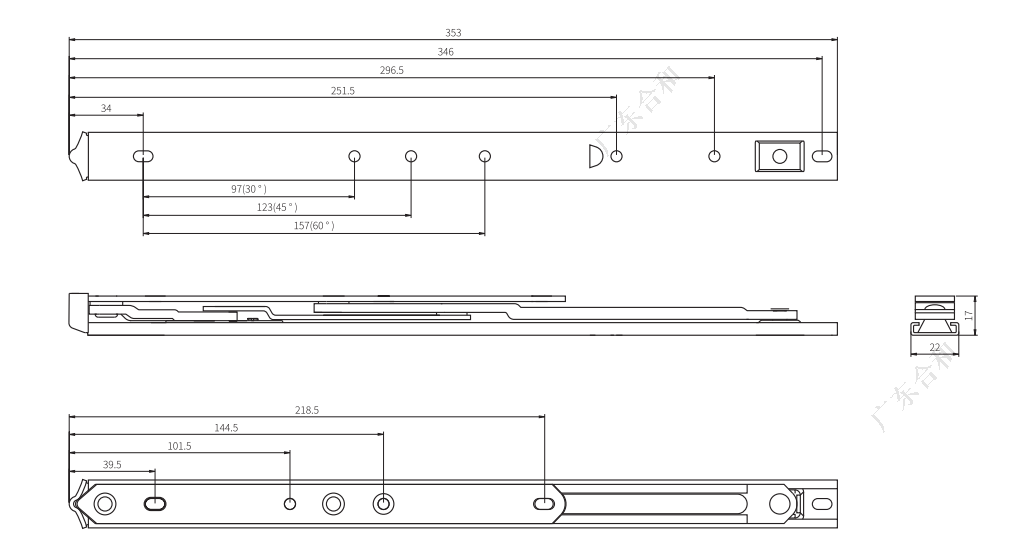

Specification

Product Description

1. Material:excellent stainless steel

2. Comply with JG/T127-2017 "Construction Door and Window Hardware-Friction Stay"

3. According to customers' requirements about the restricting opening angles.

4.Special transverse patents design and professional and observed manufacturing process.

5.Because the technological improvements and products generality has improved,we can not update,

so these data for reference only,the sizes parameters according to the real item.

6.Friction stay should ensure the connection strength of the profile first,its connection strength should more than bearing level.

The selection of friction stay

The selection of firction stay depends on the window weight and size.
Friction stay should bear the weight of the sash (glass + profile)*safety factor 1.3-1.5
Selection of its length:normally is 2/3 of the window width,or 1/2 if the window is lighter.
The length of friction stay can be referred according to the two requirements above.
The maximum opening angle of the sash is relevant with the selection of the friction stay and its installation.
Different size and type of friction stays cannot be installed on the same windows.
