Stainless Steel Customised Glass Door Bottom Patch Fitting PF-10 - Premium quality door and window other fittings hardware from Hehe Hardware from Hehe Hardware.
| Products Name | Patch Fitting |
| Brand Name | 3H or OEM |
| Model Number | PF-10 |
| Material | Stainless Steel |
| Delivery Time | 25 days after get deposit |
| Start Port | Foshan |
| Place of Origin | China |
| Application | Glass Door |
Specification
Product Description
Cover plate material:stainless steel
Surface treatment:SSS/PSS
Scope of application:Flameless glass door
Glass thickness(mm):10-19
Main material:aluminum alloy/cast iron/stainless steel
Maximum door width:1000-1100MM
Maximum door weight:100-180KG

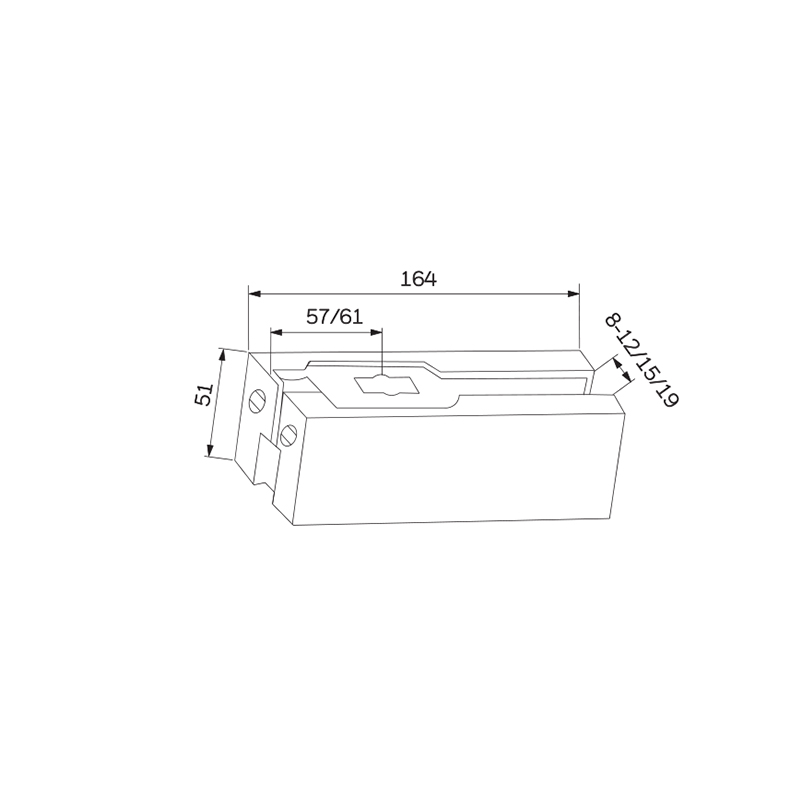

The Product Structure of Patch Fitting
Processed by precise machinary to insure preciseto tolerance and accemble it easily.
The main body of patch fitting is made of special aluminum alloy and forged by heavy force to enable the glass with max adhesion.
The patch head is made of precise casting SUS304 to match closely which enable the shaft of the floor spring not to wear off and leass maintainence.
It can be assembled with simple accessories and operation steps.
Correspond insulated material can be installed on glass between 10-20mm,patch fitting will be available for glass above 12mm for the engineering purpose.
