Transmission Device Rob PCQ1003 - Premium quality door and window other fittings hardware from Hehe Hardware from Hehe Hardware.
Item No. | PCQ1003 |
Size | Details in sheet |
Application | Casement door |
Length of fork | Optional |
Material | Aluminum alloy |
Surface Treatment | Powder coating |
Color | Customized |
Components | screws |
Function | durable,easy-installation,smooth-operation |
Package | Box |
Specification
Product Description
Operating standard:JG/T126-2017"Construction Door and Window Hardware-Multi-point Transmission Device".
Transmission lock closed circulation 25000,no distortion and deformation and can be used.
Scope of application :Casement Door and Sliding Door .
4.The transmission lock that controls the lock and transmission of window and door.

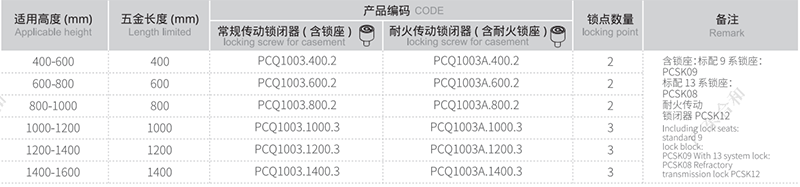

5.Standard aluminum transmission rods are avaible in lengths: 400mm,600mm,800mm,1000mm,1200mm and 1400mm.
6.Transmission rod with special specification can be made as per customers' requirements.
