Transmission Device Rob PCQ3501 - Premium quality door and window other fittings hardware from Hehe Hardware from Hehe Hardware.
Item No. | PCQ3501 |

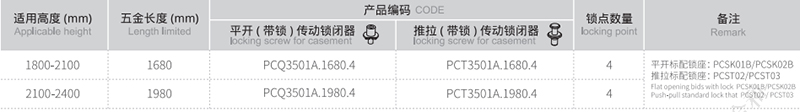

Size | Details in sheet |
Application | Casement door |
Length of fork | Optional |
Material | Aluminum alloy |
Surface Treatment | Powder coating |
Color | Customized |
Components | screws |
Function | durable,easy-installation,smooth-operation |
Package | Box |
Specification
Product Description
Operating standard:JG/T126-2017"Construction Door and Window Hardware-Multi-point Transmission Device".
Transmission lock closed circulation 30,000 times,all the parts without distortion and don't affect use.
Scope of application :Building exterior wall inside and outside are casement windows,casement doors,
sliding doors and windows,and hung windows.
4.Corrosion resistance NSS test reach 96 hours,the degree of protection is not less than 8 grades.
5.When the transmission device is in lockup position,giving 26N.m torque at handle lockup direction,all parts
don't have any damage and deformation.
