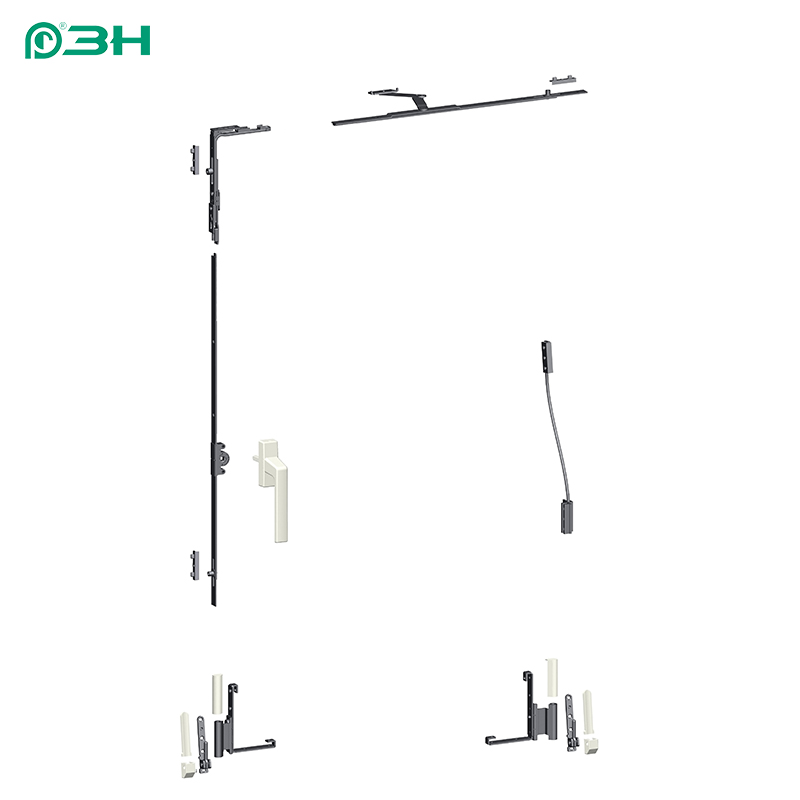

U Grooved Bottom Hung Window Hardware System - Premium quality outswing window hardware system solution from Hehe Hardware.
Item No. | bottom hung window hardware system |
Application | UPVC awning windows |
UPVC Profile | 9/13 Series |
Applicable Size | Sash height 550-1700mm, sash width 300-1000mm |
Main material | Stainless steel 304, aluminum alloy |
Finish | Power coating |
Specification
| No. | Item No. | Item Name | QTY | Remark |
| 1 | PCZ26 | Handle | 1 | Standard square shaft length:34mm,the screw:M5*5mm |
| 2 | PCQ1506 | Transmission device | 1 | Center distance:15mm |
| 3 | PCSK09 | Casement lock seat | 1 | 9 series |
| 4 | PX.ZJQ01A | Corner device | 1 | |
| 5 | PCG04A/660 | Connecting rod | 1 | the specification should be chosen as per the width of window |
| PCG04A/860 | Connecting rod | 1 | ||
| 6 | PJCX03R | Bottom hinge | 1 | 9 series |
| 7 | PJCX03L | 1 | 9 series | |
| 8 | AFS02 | Anti-fall device | 1 |
Product Description
This configuration max loading is 60kg,which depends on the hinges.there are more optional.please refer to the hinge series.
there are more optional handles,please refer to the handle series.
the above configuration is suitable for 9 series profiles and the 13 series profile.
the above hardware system is for reference only.for details,please send us relevant information and contact our technical department.
