U Grooved Outwards Opening Window Hardware System - Premium quality outswing window hardware system solution from Hehe Hardware.
Item No. | outwards opening window hardware system |
Application | UPVC swing windows |
UPVC Profile | 9 Series |
Applicable Size | Sash height 550-1700mm, sash width 300-1000mm |
Main material | Stainless steel 304, aluminum alloy |
Finish | Power coating |
Specification

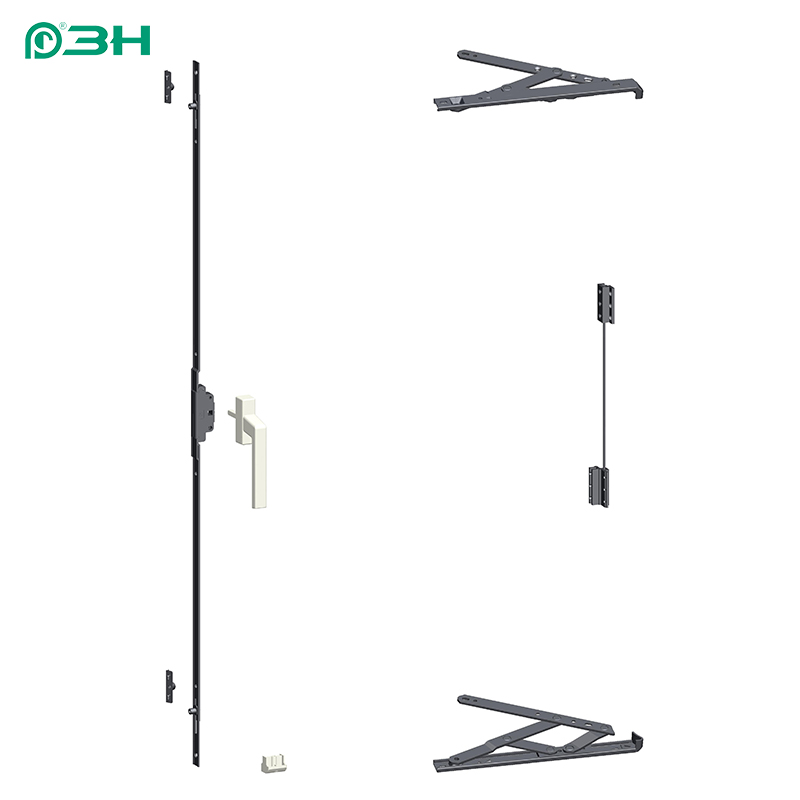

| No. | Item No. | Item Name | QTY | Remark |
| 1 | PCZ28 | Handle | 1 | Standard square shaft length:38mm,the screw:M5*55mm |
| 2 | PCQ2001 | Transmission device | 1 | Center distance:20mm |
| 3 | PCSK01B | Casement lock seat | 1 | 9 series |
| 4 | PHKS | Casement Friction Stay | 2 | 10-16 inches,the stack height is 16.5mm/18mm |
| 5 | PFS02R/L | Safety lock | 1 | / |
| 6 | PFT03 | Elevator block | 1 | / |
Product Description
This configuration max loading depends on the friction hinges.there are more optional.please refer to the frictioin hinge series.
there are more optional handles,please refer to the handle series.
the elevator block is must be used.
the above hardware system is for reference only.for details,please send us relevant information and contact our technical department.
