U Grooved Top Hung Window Hardware System - Premium quality outswing window hardware system solution from Hehe Hardware.
Item No. | top hung window hardware system |
Application | UPVC awning windows |
UPVC Profile | 9 Series |
Applicable Size | Sash height 550-1700mm, sash width 300-1000mm |
Main material | Stainless steel 304, aluminum alloy |
Finish | Power coating |
Specification
<

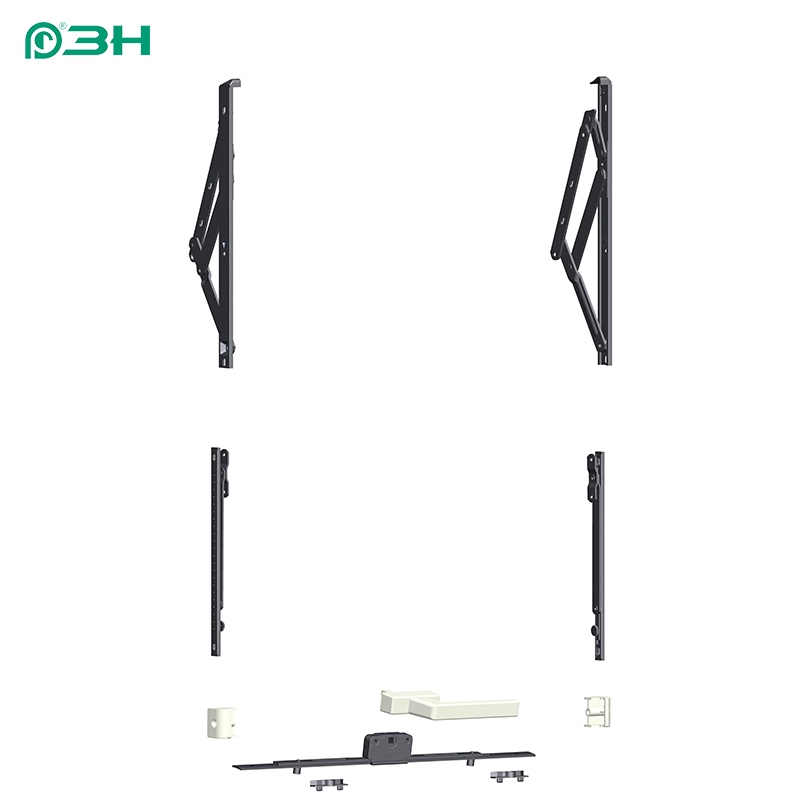

| No. | Item No. | Item Name | QTY | Remark |
| 1 | PCZ28 | Handle | 1 | Standard square shaft length:38mm,the screw:M5*55mm |
| 2 | PCQ2503 | Transmission device | 1 | Center distance:20mm |
| 3 | PCSK01B | Casement lock seat | 1 | 9 series |
| 4 | PHXKA | Friction Stay | 2 | 10-16 inches,the stack height is 15.5mm/17mm |
| 5 | PDE B | Limiter stay | 1 | 10-14 inches |
| 6 | PFT03 | Elevator block | 1 | / |
Product Description
Outwards Top-hung window accessories:
The max loading is depend on the friction stay.there are more options base on the profiles size.There are more optional handles please refer to the handle series.
lt's order to avoid the friction between the lock pin and lock holder.and might be out of the shape ofwindow.the elevator block is reauired
According to the window height and opening angle.when the top-hung friction stay is used.the limiter stay is option.
The above hardware system is or reerence only. Please provide relevant intormation and contact our technical department
