U-Grooved UPVC Casement Door Hardware System - Premium quality door hardware system solution from Hehe Hardware. Engineered for durability, smooth operation, and reliable performance in residential an
| Brand:3H | |
| Maximum sash width： 800MM | |
| Maximum sash height：2400 MM | |
| Maximum load bearing：80KG | |
| Product adaptation standard：GB/T8478-2008 Aluminium Alloy Doors and Windows | |
| Package: 1 set in a inner box,5 boxes per parcel | |
| Application:European Standard Outwards Opening Doors | |
Specification
<

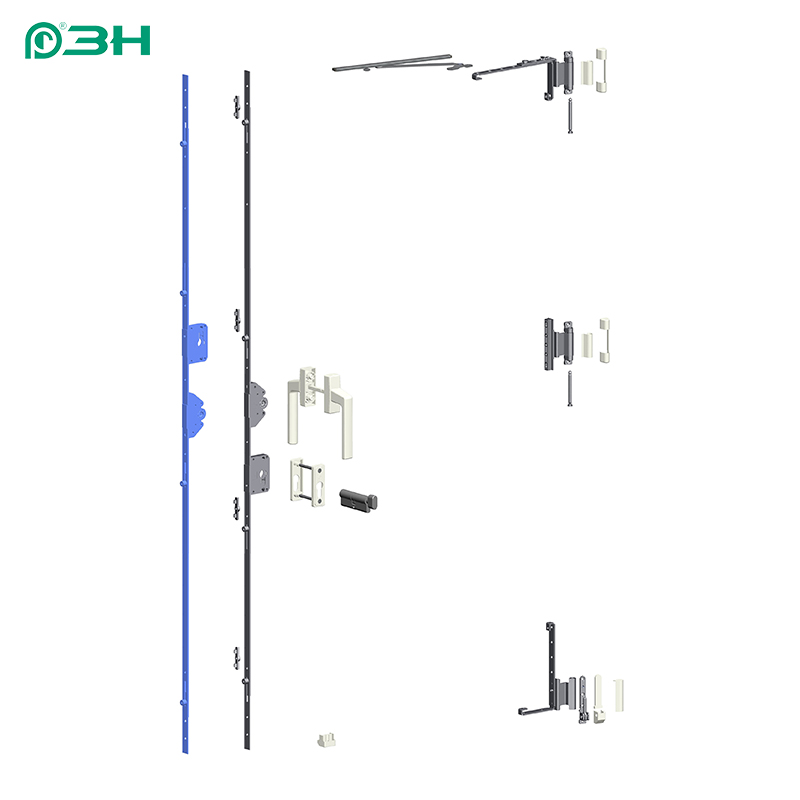

| No. | Item No. | Item Name | QTY | Remark |
| 1 | PCZ26A | square shaft handle | 1 | various kinds of handles |
| 2 | PCO3501A.1680.4 | Transmission Device | 1 | Center distance: 30/35/40 mm |
| 3 | PCO3501A.1980.4 | Transmission Device | 1 | / |
| 4 | PCO3501B.1680.4 | Transmission Device | 1 | Center distance: 35 mm |
| 5 | PCQ3501B.1980.4 | Transmission Device | 1 | / |
| 6 | PCSK02B | Casement lock holder | 4 | 13series |
| 7 | PJMS03AR/L | Upper Hinge | 1 | / |
| 8 | PJMZ03 | Middle Hinge | 1 | / |
| 9 | PJMX03AR/L | Bottom Hinge | 1 | / |
| 10 | PFZ01 | Lock Plate | 1 | Depends on the profile |
| 11 | 40/40TB | Cylinder | 1 | |
| 12 | PFT03 | Elevator Block | 1 | / |
| 13 | PDZ14D | Limiter Stay | 1 | 14 inch |
Product Description
The above accessories'max loading:80KG.which depends on the hinge.refer to the hinge series for option.
The above accessories are suitable for the balcony,toilet.
Refer to the handles' series for option.
The above hardware system is for reterence only, Please provide relevant intormation and contact our technical department
