UPVC Casement Door Hardware System PMSD01A - Premium quality door hardware system solution from Hehe Hardware. Engineered for durability, smooth operation, and reliable performance in residential and
| Brand:3H | |
| Maximum sash width： 800MM | |
| Maximum sash height：2400 MM | |
| Maximum load bearing：100KG | |
| Product adaptation standard：GB/T8478-2008 Aluminium Alloy Doors and Windows | |
| Package: 1 set in a inner box,5 boxes per parcel | |
| Application:European Standard Outwards Opening Doors | |
Specification
<
<

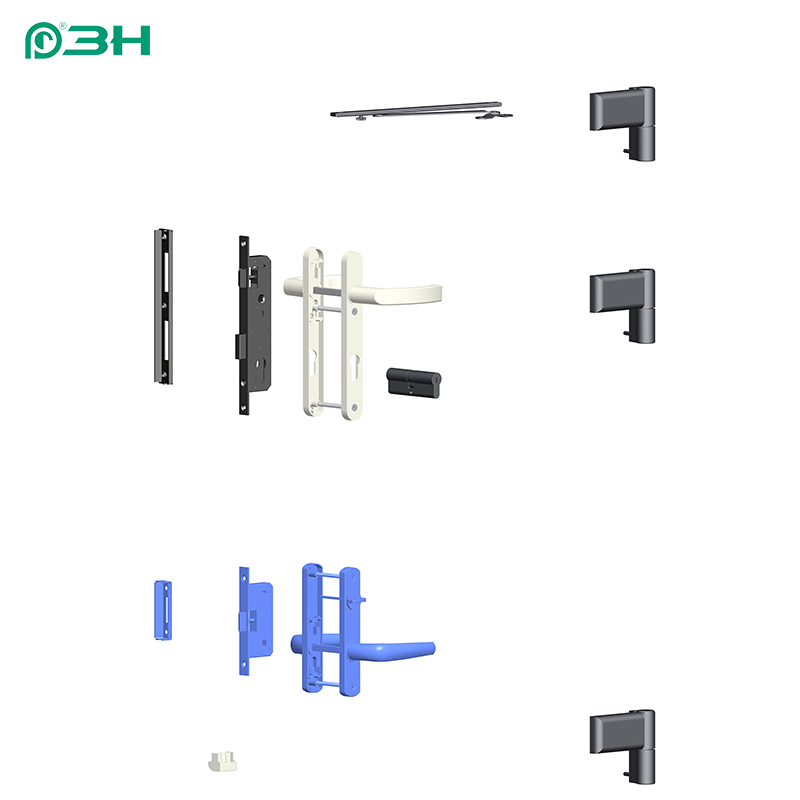

| No. | Item No. | Item Name | QTY | Remark |
| 1 | PMSD01A Door's single point lock | PMSD01-01lock body | 1 | Depends on the profile |
| PMSD01-02 handle | 1 | / | ||
| PMSD01-03 lock buckle | 1 | / | ||
| PMSD01-04 cylinder | 1 | / | ||
| 2 | PMSD05 Door's single point lock | PMSD01-01lock body | 1 | Depends on the profile |
| PMSD01-02 handle | 1 | / | ||
| PMSD01-03 lock buckle | 1 | / | ||
| 3 | 3D Hinge | PJH12BR/L | 3 | Left and right version.Optional |
| 4 | Elevator Block | PFT03 | 1 | / |
| 5 | Limiter Stay | PDZ B | 1 | 10-14 inch |
Product Description
The above accessories'max loading:100KG.which depends on the hinge.refer to the hinge series for option.
The above accessories are suitable for the balcony,toilet.
The max loading depends in the 3D Hinge.which can adjust as different directions.upper and lower.left and rieht.front and back.
The above hardware system is for reterence only, Please provide relevant intormation and contact our technical department
