UPVC U-Grooved Casement Door Hardware System with Bidirectional Handle - Premium quality door hardware system solution from Hehe Hardware. Engineered for durability, smooth operation, and reliable per
| Brand:3H | |
| Maximum sash width： 800MM | |
| Maximum sash height：2400 MM | |
| Maximum load bearing：100KG | |
| Product adaptation standard：GB/T8478-2008 Aluminium Alloy Doors and Windows | |
| Package: 1 set in a inner box,5 boxes per parcel | |
| Application:European Standard Outwards Opening Doors | |
Specification
<
<

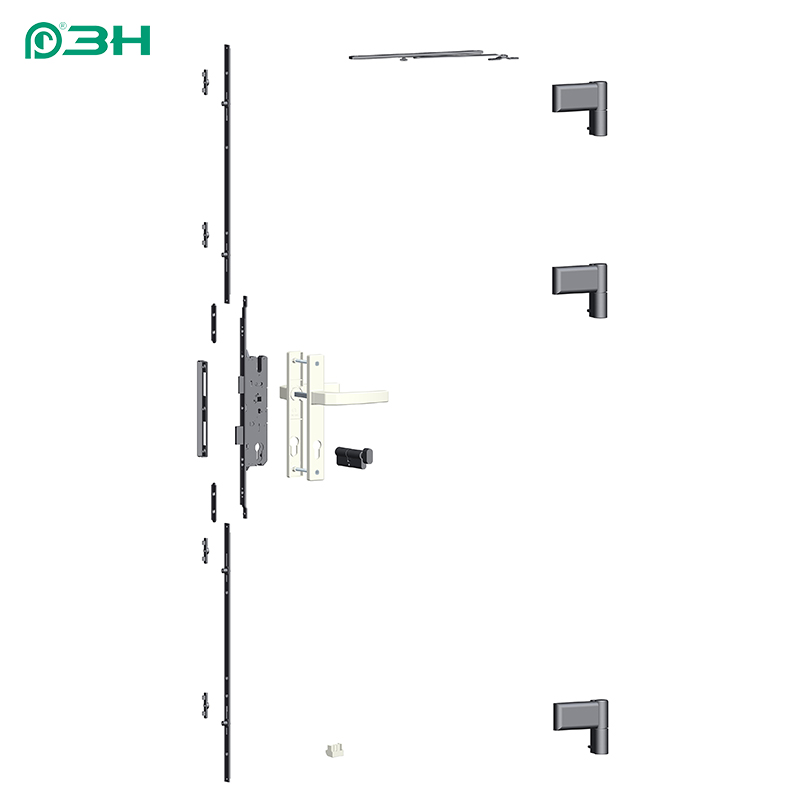

| No. | Item No. | Item Name | QTY | Remark |
| 1 | CZM19A | Double handle | 1 | Various models of handle can be chosen |
| 2 | P8535A | Lock Body | 1 | Left and right verson.depends on the profile |
| 3 | PSL-600 | Connector Bar | 2 | According to door leaf height to select |
| PSL-880 | Connector Bar | 2 | ||
| 4 | PZMK02 | Lock Plate | 1 | depends on the profile |
| 5 | 40/40TB | Cylinder | 1 | depends on the profile |
| 6 | PCSK02B | Casement lock holder | 4 | 13series,depends on the profile |
| 7 | PJH12BR/L | 3D Hinqe | 3 | Left and right verson.depends on the profile |
| 8 | PFT03 | Elevator Block | 1 | / |
| 9 | PDZB | Limiter Stay | 1 | 10-14 inch |
<
Product Description
The above accessories max loading:100KG.which depends on the hinges. refer to the hinge series for more options.
The above accessories can be multi-points lock. suitable for the balcony.doors and others'.
The max oading depends in the 3D Hinge.which can adjust as difterent directions.upper and lower.let and right.front and back.
The above hardware system is for reference only.Please provide relevant information and contact our technical department.
