Window and door hinge JX117 - Premium quality door & window hinge hardware from Hehe Hardware.
Item No. | JX117 |

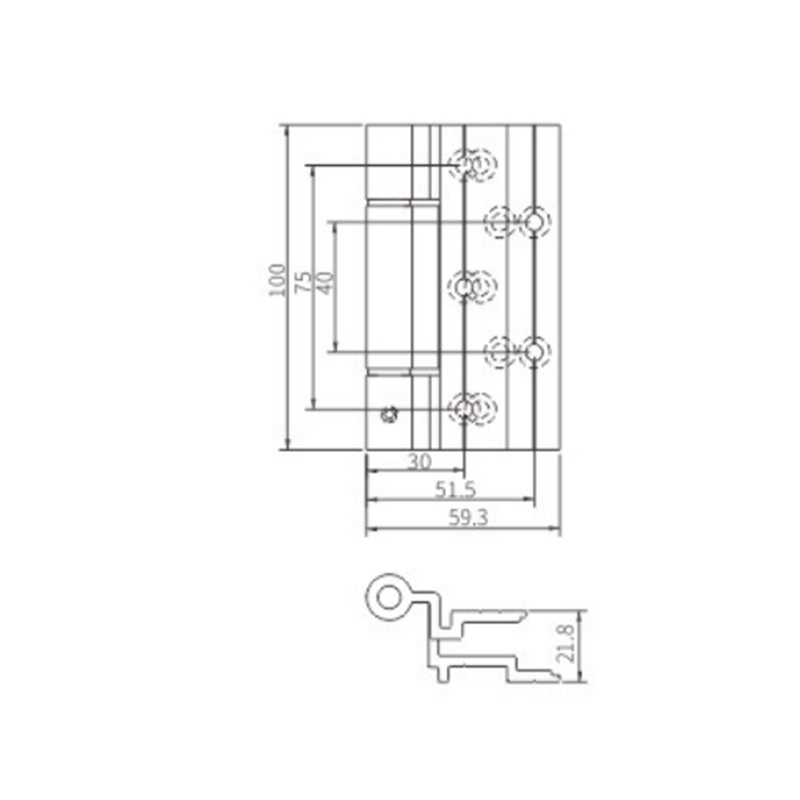

Size | 100*59.3*21.8mm |
Application | Special casement window and door |
Load Bearing | 60KG/pair |
Material | Aluminum alloy |
Surface Treatment | powder coating |
Color | Optional |
Components | screws |
Function | durable,easy-installation,smooth-operation |
Package | Polybag |
Specification
Product Description
1. Apply to the casement door which sash and frame are in a same plane,if not,and additional block should be installed on the border.
2. Maximum load bearing is 60KG/pair,the load bearing of hinge is relevant to hinge installation and profile.
3. The hinge is eccentric adjustable,the method is the same as installation instruction shown.
4. Without left or right version.
