Window Hinge JX05B - Premium quality door & window hinge hardware from Hehe Hardware.
Item No. | JX05B |

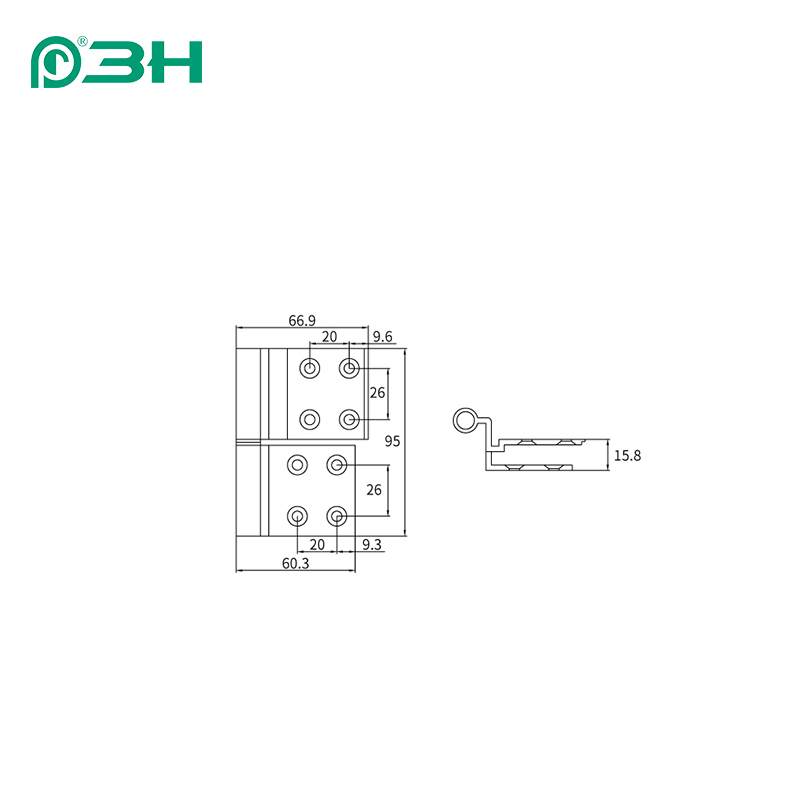

Size | 60.3*95*15.8mm |
Application | Normal casement window |
Load Bearing | 60KG/pair |
Material | Aluminum alloy |
Surface Treatment | powder coating |
Color | Optional |
Components | screws |
Function | durable,easy-installation,smooth-operation |
Package | Polybag |
Specification
Product Description
1. Apply to the casement door which sash and frame are in a same plane,if not,and additional block should be installed on the border.
2. Maximum load bearing is 60KG/pair,the load bearing of hinge is relevant to hinge installation and profile.
3. Applicable range:normal casement doors and windows.
