Concealed Gearbox Tilt And Turn Window Hardware System YNXC07 - Premium quality inswing window hardware system solution from Hehe Hardware.
Item No. | YNXC07 |
Size | / |
Application | Tilt-turn window |
Load Bearing | 80KG/per set |
Material | stainless steel/zinc alloy |
Surface Treatment | powder coating |
Color | Optional |
Components | screws |
Function | durable,easy-installation,smooth-operation |
<
| Maximum sash height：700MM | |
| Maximum load bearing：80KG | |
| Product adaptation standard：GB/T 24061 Construction Window Tilt and Turn Window Hardware System | |
| Package: 1 set in a inner box,20sets per carton | |
| Application:tilt and turn windows |

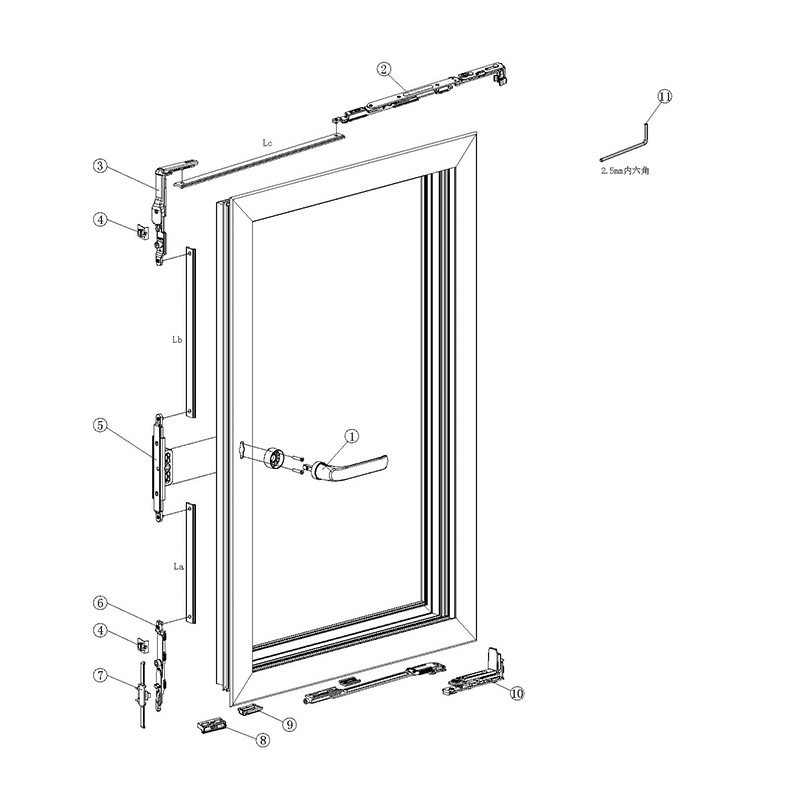

| Gearbox Concealed Tilt and Turn Window Hardware System YNXC07 | ||||
| No. | Item Name | Item no. | Usage | Remark |
| 1 | Shaft Handle without Base | CZ67 | 1 | Length of shaft:24mm |
| 2 | Upper hinge | YNXC05R-02 | 1 | Suitable for the sash width:501-700mm |
| 3 | Corner device | CC11A | 1 | / |
| 4 | Corner joint | CKG05 | 2 | / |
| 5 | Transmission rod | CH62 | 1 | / |
| 6 | Inverted locking parts | NXC16-11 | 1 | / |
| 7 | Anti-lift stricker | A.CZ01-02 | 1 | / |
| 8 | Supporting block | NXC16-12 | 1 | / |
| 9 | Elevator | A.CZ01-01 | 1 | / |
| 10 | Bottom hinge | YNXCO5R-01 | 1 | / |
Specification
Product Description
1.Concealed adjustable hinge,which can effectively ensure air tightness and water tightness, and make the whole window look neater and more beautiful, easy to install, easy to remove, and easy to adjust.
2.Quick positioning and installation, all components can be directly inserted through installation.
