Gearbox Tilt and Turn window hardware system NXC18 - Premium quality inswing window hardware system solution from Hehe Hardware.
Item No. | NXC18 |
Size | / |
Application | Tilt-turn window |
Load Bearing | 90KG/per set |
Material | stainless steel/zinc alloy |
Surface Treatment | powder coating |
Color | Optional |
Components | screws |
Function | durable,easy-installation,smooth-operation |
<
| Brand:3H | |
| Maximum sash width： 2200MM | |
| Maximum sash height：700MM | |
| Maximum load bearing：90KG | |
| Product adaptation standard：GB/T 24061 Construction Window Tilt and Turn Window Hardware System | |
| Package: 1 set in a inner box,20sets per carton | |
| Application:tilt and turn windows | |
<

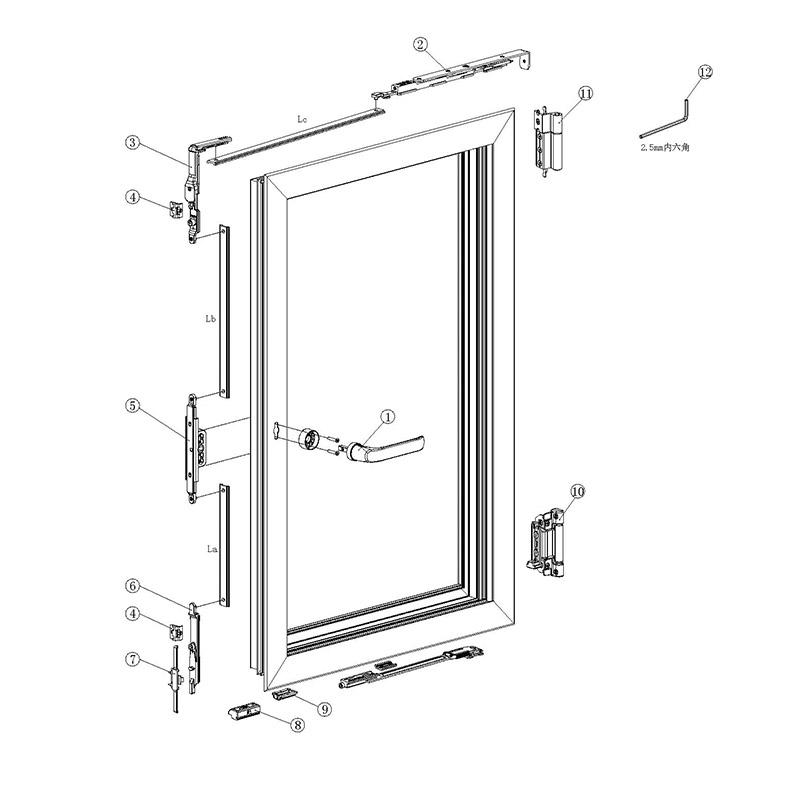

| Gearbox Surface-Mounted Tilt and Turn Window Hardware System | ||||
| No. | Item Name | Item no. | Usage | Remark |
| 1 | Shaft Handle without Base | CZ67 | 1 | Length of shaft:24mm |
| 2 | diagonal rod | NXC16-03 | 1 | Suitable for the sash width:501-700mm |
| 3 | Corner device | CC11A | 1 | / |
| 4 | Corner joint | CKG05 | 2 | / |
| 5 | Transmission rod | CH62 | 1 | / |
| 6 | Inverted locking parts | NXC16-11 | 1 | / |
| 7 | Anti-lift stricker | A.CZ01-02 | 1 | / |
| 8 | Supporting block | NXC16-12 | 1 | / |
| 9 | Elevator | A.CZ01-01 | 1 | / |
| 10 | Bottom hinge | NXC16-02 | 1 | / |
| 11 | Upper hinge | NXC16-01 | 1 | / |
Specification
Product Description
1.The hinge adopts a quick-loading card slot design, which saves time and effort, and is efficient and convenient.
2.Repeatedly opening and closing 50000 times.
3.The tablet material is made of stainless steel 304 precision machining, which has higher strength, better corrosion resistance, firmness and safety.
4. The diagonal rod adopts a grooved design, precise connection and quick positioning, which can effectively avoid the phenomenon of accessories falling off and side slip during the installation process.
5.Adapt to a small corner device to achieve multi-point locking, improving the sealing and wind pressure resistance of the entire window.
6.The bottom hinge adopts a sealed structure for higher strength.
7.The surface of all the accessories adopt spraying technology, which is flat, smooth and beautiful.
