Inwards Opening Bottom Hung Window Hardware System HNXC01 - Premium quality inswing window hardware system solution from Hehe Hardware.
| Maximum sash width： 700MM | |
| Maximum sash height： 2200MM | |
| Maximum load bearing：90KG | |
| Product adaptation standard：GB/T24601-2009 Construction Window-Bottom Hung Window | |
| Package: 1 set in a inner box,5 boxes per parcel | |
| Application:European standards profile windows |
Specification

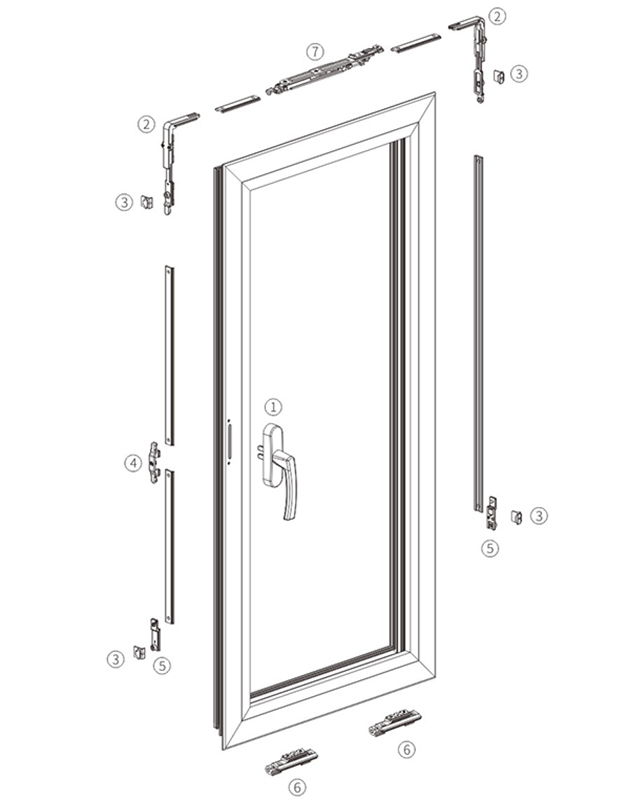

| No. | Item Name | Usage | product description |
| 1 | Window handle | 1 | aluminum alloy+zinc alloy,powder coating |
| 2 | Corner device | 2 | 304SS ,Natural |
| 3 | Stricker | 4 | 304SS ,Natural |
| 4 | Converter | 1 | 304SS ,Natural |
| 5 | Connecting Block | 2 | 304SS ,Natural |
| 6 | Hinge | 2 | aluminum alloy,natural |
| 7 | Bottom Hung Parts | 1 | 304SS ,Natural |
Product Description
1.This configuration is suitable for European standard 20 groove profile,the interval between frame and sash is 11.5mm.
2.Various kinds of handles can be optional.
3.The minimum width of the window sash is 500mm,the corner device can be configurated to achieve the multiple locking function of window frame.
4.The surface of all the accessories adopt spraying technology, which is flat, smooth and beautiful.
