Features：

• The minimum thickness of door is 8mm(glass),the buffering time is 2-5s, and the service life test can reach 80,000 times

•  The pulley set can be assembled separately within the track without reserving maintenance holes, easy to install and maintain.

•  Smooth operation, silent buffering

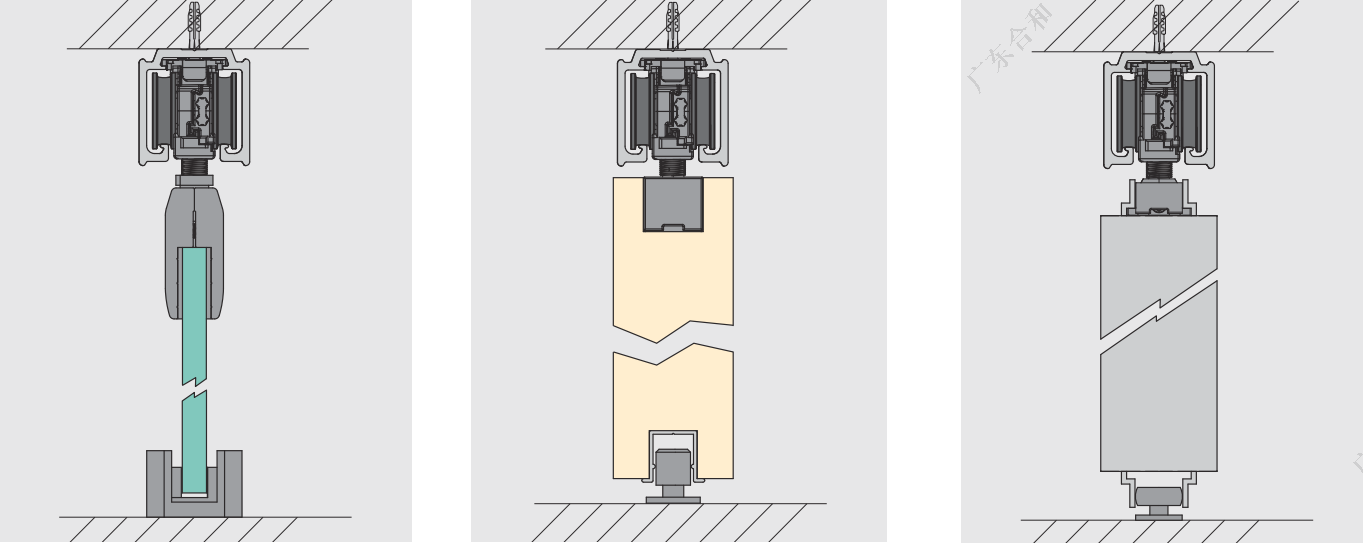

• The hung cases can be optional in the buffering device configurations,it can be used to narrow aluminum door,wooden door and glass door.

Specification

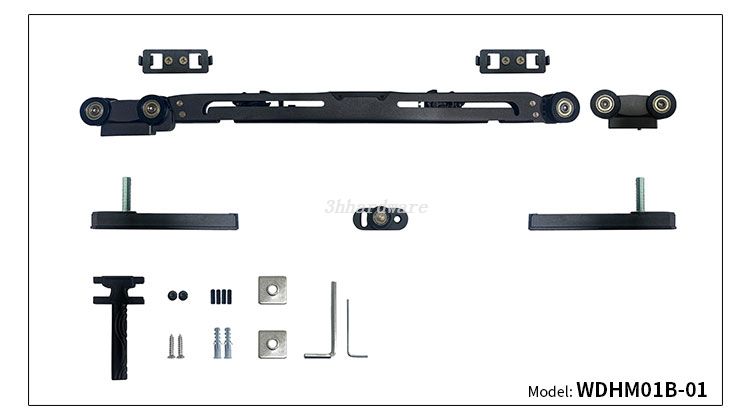

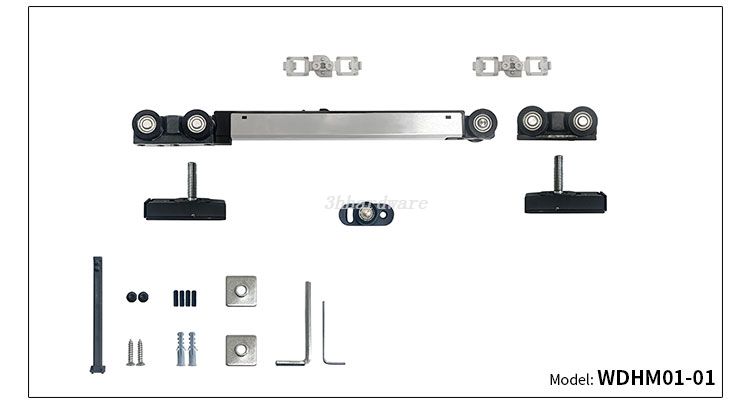

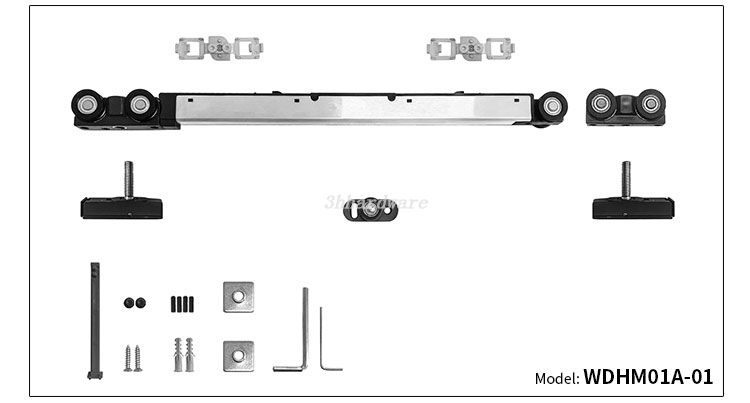

	WDHM01A-01	WDHM01B-01	WDHM01-01
Regulation	389*15.2*30	416.4*14.2*30	299.2*14.5*30
Main materials	Plastic+alloy	Zinc cabinet+	Plastic+alloy
Applicable scenes	Wooden doors,aluminum alloy doors,glass doors	Wooden doors,aluminum alloy doors,glass doors	Wooden doors,aluminum alloy doors,glass doors
Max load bearing	80KG	80KG	30KG
Min.thickness of door	8mm	8mm	8mm
Min.width of door	470mm	600mm	380mm
Buffering direction	Bidirectional	Bidirectional	Unidirectional
Buffering time	2~5s	2~5s	2~5s
Buffering stroke	65mm	75mm	45mm
Life service test	5w~8w	5w~8w	5w~8w
Difference	Large load bearing,cost-efficient,	Large load bearing, zinc alloy cabinet,high quality raw material	Single directional,cost-efficient

Specifications of hanging wheel sliding door hardware system

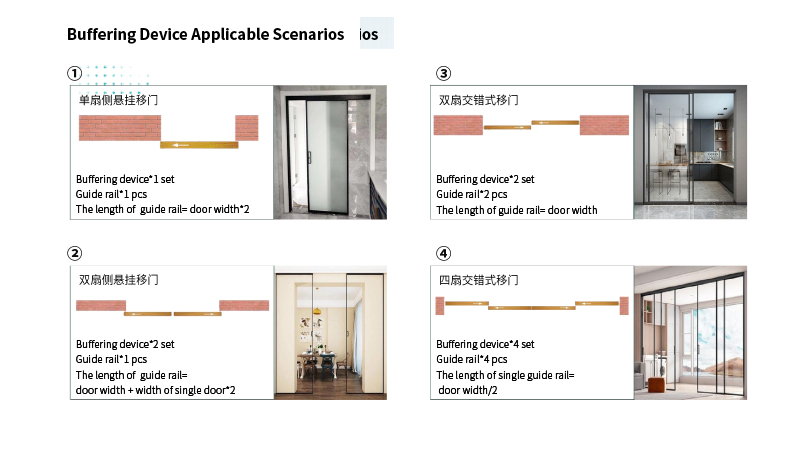

Applicable Scenarios

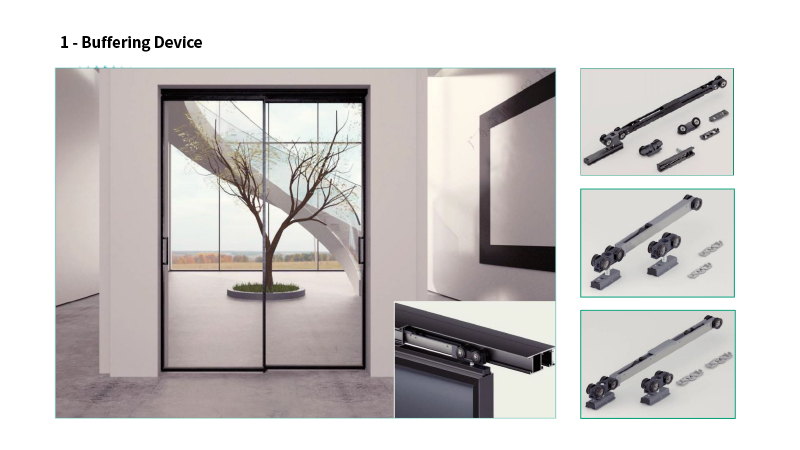

Product Series List

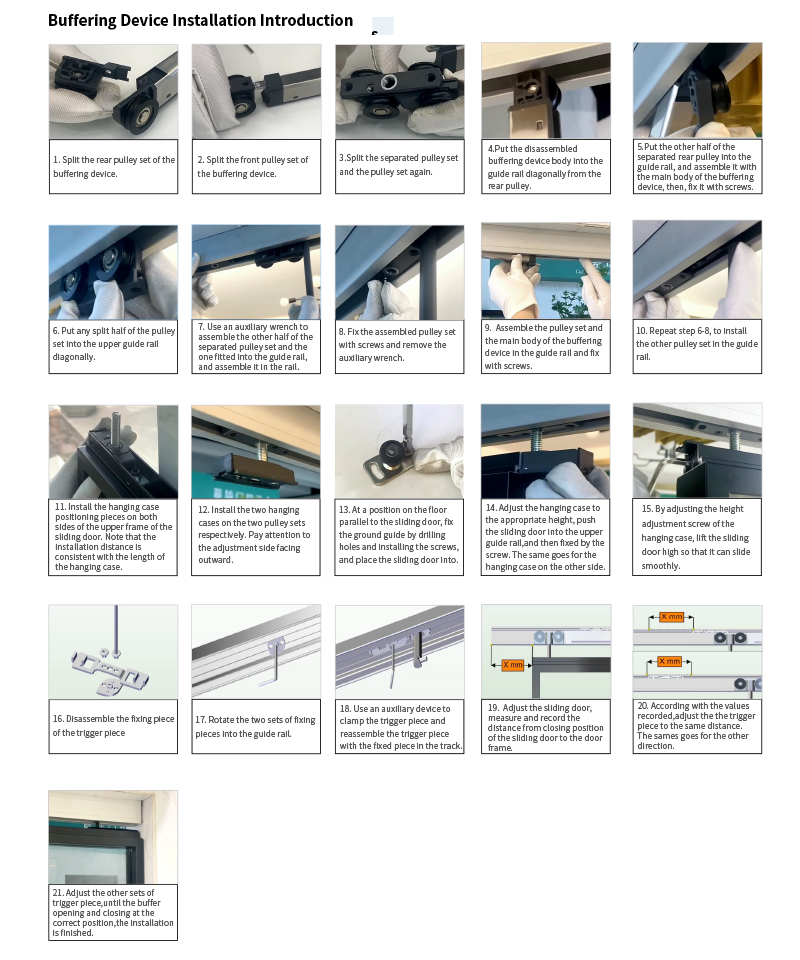

Installation Introduction

Advantages

The advantages of hanging wheel sliding door hardware system:

1.Adapted to extremely narrow doors, the narrowest can be adapted to 8mm (glass).

2.The buffer is configured with a variety of hanging codes, which can be applied to more scenarios.

3.The pulley block can be assembled separately in the track, without reserving maintenance holes, easy to replace and install.

4.Smooth operation, silent buffering.
