U-Grooved Sliding Door Hardware System from China manufacturer - Premium quality sliding door hardware system solution from Hehe Hardware.
Item Name | upvcp43 |
Size | Standard grooved |
Application | Balcony, Sunshine room,Partition door |
Load Bearing | Maximum bearing load of single sash is 120kg |
Material | 304 stainless Steel,Aluminum alloy |
Surface Treatment | Powder coating |
Color | handles' is customized,the other is natural |
Components | Transmission parts,Front roller parts,Rear roller parts,Affiliated parts,Handle,Middle roller parts,Rubber sealing strip |
Function | durable,reliable |
Package | Box |

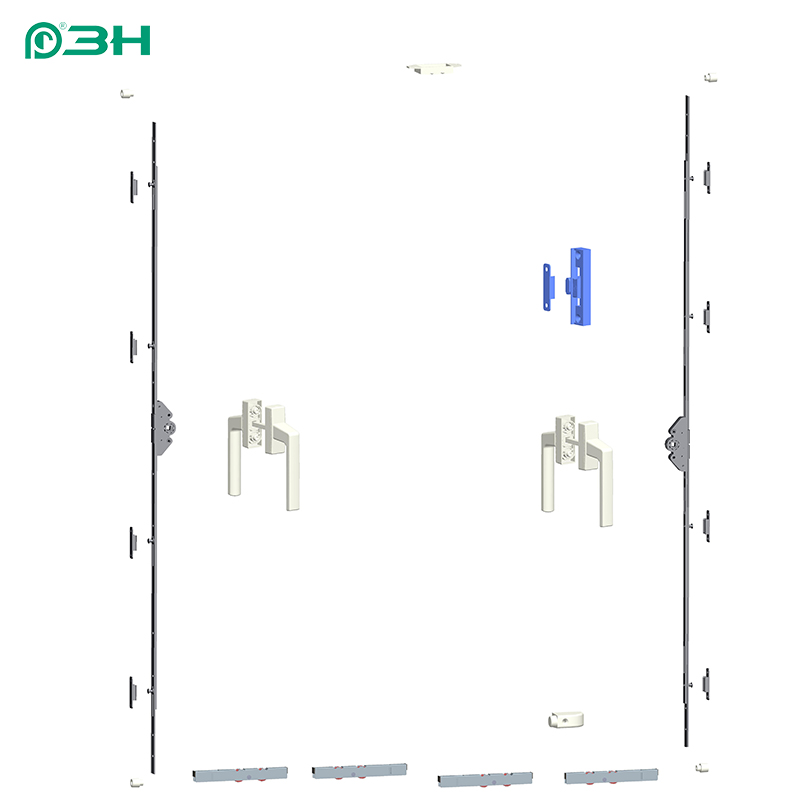

Specification
<
| No. | Item No. | Item Name | QTY | Remark |
| 1 | PCZ26A | Square shaft handle | 2 | According to the type door configuratior |
| 2 | PCT2501.1680.4 | Transmission Device | 2 | Accordine to the material selectionCenter distance: 25 mm |
| PCT2501.1980.4 | 2 | |||
| PCT30011680.4 | 2 | According to the material selectionCenter distance: 30 mm | ||
| PCT3001.1980.4 | 2 | |||
| 3 | PCST02 | Sliding lock holder | 8 | / |
| 4 | PSS02 | Lock bolt | 1 | / |
| 5 | PCST02 | Sliding lock holder | 1 | / |
| 6 | PLTS02C-AS | Double Roller | 2 pcs/sash | Depends on the profile |
| 7 | PFK09A | Bumping Block | 4 | / |
| 8 | T396+T397 | Bumping Block | 1 | / |
| 9 | PFK07A | Plastic Block | 1 | / |
Product Description
1.The above accessories'max loadine:120KG.which depends on the roller.refer to the hinge series for option
2.Refer to the handles series for more options.
3.The above hardware system is for reference only, Please provide relevant intormation and contact our technical department.
