UPVC U-Groove Sliding Window System With Crescent Lock - Premium quality sliding window hardware system solution from Hehe Hardware.
| Brand:3H | |
| Maximum sash width：700 MM | |
| Maximum sash height： 1500MM | |
| Maximum load bearing：35KG | |
| Product adaptation standard：GB/T8478-2008 Aluminium Alloy Doors and Windows | |
| Package: 1 set in a inner box,20sets per carton | |
| Application:hotel,office building |
Specification
<

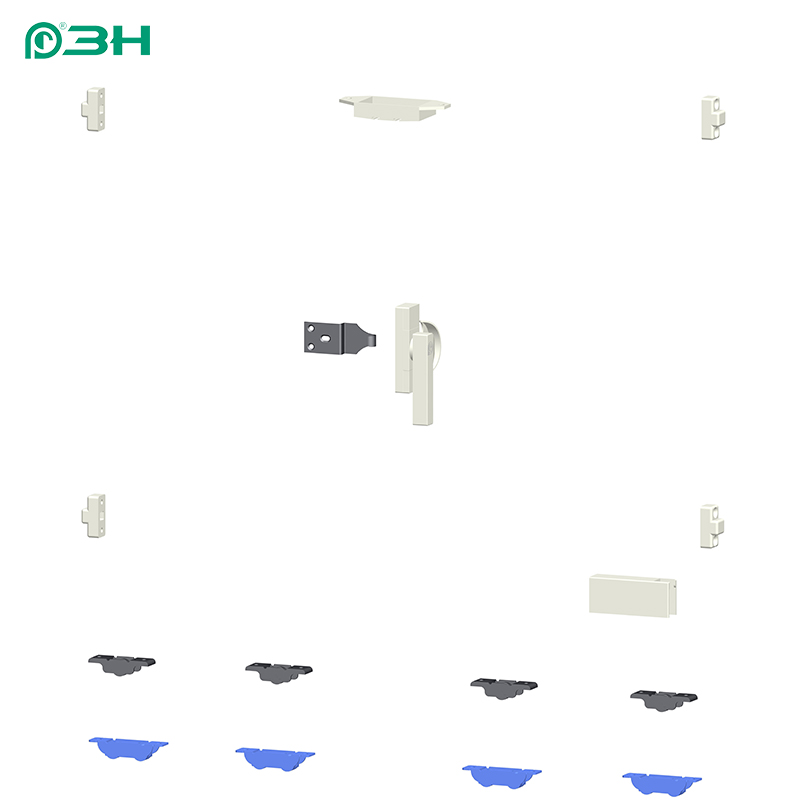

| No. | Item No. | Item Name | QTY | Remark |
| 1 | PSB13R/L | Crescent lock | 1 | Left and right version,optional |
| 2 | PSBG01A | Lock hook | 1 | Depends on the profile |
| 3 | PLD02D-AS | Single roller | 2 | Optional |
| 4 | PFK02 | Bumping block | 4 | / |
| 5 | PFK05 | Limiter block | 1 | / |
| 6 | PFK07A | Plastic block | 1 | / |
| 7 | PLBS03C-AS | Double roller | 2 | Optional |
Product Description
The above accessories max loading:35KG.which depends on the rollers.there are more optional rollers.
There are more optional crescent lock.refer to the series for the specification.
In order to avoid crescent lock knocking against the frame.the limiter block is the required.
The above hardware system is for reference only.Please provide relevant information and contact our technical department.
