UPVC U-Groove Sliding Window System With Sliding Latch Lock - Premium quality sliding window hardware system solution from Hehe Hardware.
| Brand:3H | |
| Maximum sash width：700 MM | |
| Maximum sash height： 1500MM | |
| Maximum load bearing：35KG | |
| Product adaptation standard：GB/T8478-2008 Aluminium Alloy Doors and Windows | |
| Package: 1 set in a inner box,20sets per carton | |
| Application:hotel,office building |
Specification
<
<

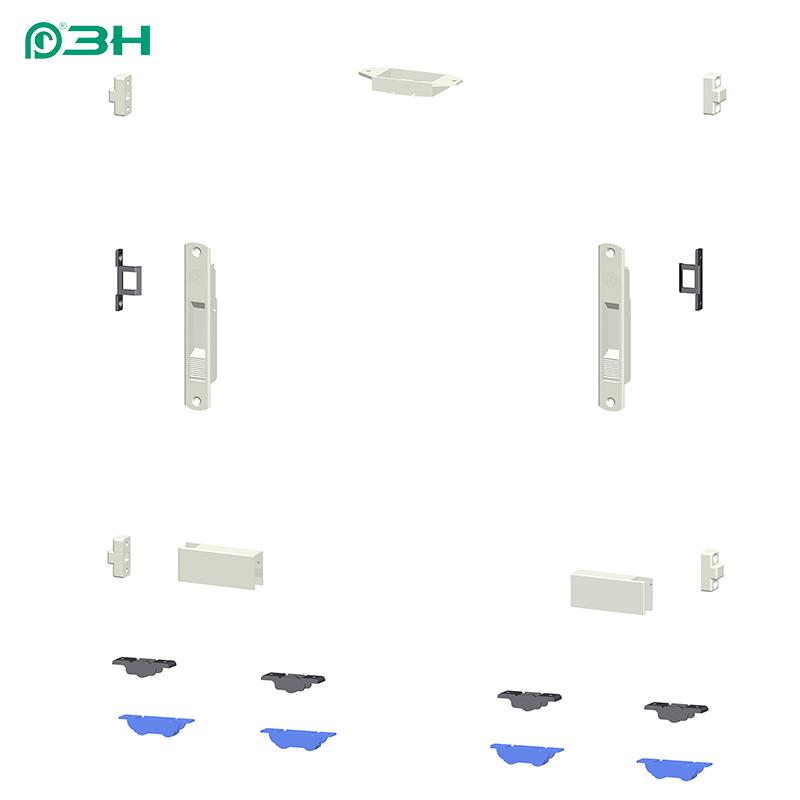

| No. | Item No. | Item Name | QTY | Remark |
| 1 | PSTP01R | Crescent lock | 1 | Base on the profile's size for suitable hook |
| 2 | PSTP01L | Lock hook | 1 | |
| 3 | PLD02D-AS | Single roller | 2/sash | Optional |
| 4 | PFK02 | Bumping block | 4 | / |
| 5 | PFK05 | Limiter block | 2 | / |
| 6 | PFK07A | Plastic block | 1 | / |
| 7 | PLBS03C-AS | Double roller | 2/sash | Optional |
Product Description
The above accessories max oading is 35KG.which depends on the roller.there are more optional rolers tor reference.
There are more optional sliding spring locks.refer to the sliding series.
The above hardware system is for reference only, Please provide relevant information and contact our technical department
